High-Speed Telecentric Measurement System

This advanced telecentric measurement system achieves unmatched speed and precision in outer diameter and dimensional inspection.

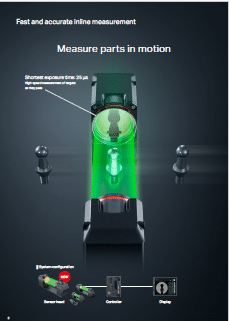

Keyence has introduced the KEYENCE TM-X5000 Series, a next-generation telecentric measurement system engineered for precision and speed in inline inspections. It ensures unmatched accuracy across diverse applications. Powered by a dual telecentric optical system, it captures silhouette-based images with exceptional clarity, regardless of material type or target alignment. This unique configuration eliminates focus-related errors and provides distortion-free imaging, ensuring reliable measurements even on moving parts. High-intensity green LED illumination enables exposure times as short as 25 µs, allowing accurate inspection of fast-passing targets without image blur.

Designed for versatility, the Series supports up to 100 simultaneous measurements, including outer diameter, width, height, radius, GD&T, and defect inspection. It detects burrs, chips, foreign particles, and even subtle surface flaws, making it ideal for automotive, electronics, medical, and industrial applications. Installation is straightforward with the system’s optical-axis alignment function, and the compact sensor heads are adaptable to tight spaces using optional mirrors. With flexible mounting options—base or base-free—integrating the TM-X5000 into existing lines is simple and non-intrusive.

– Advertisement –

The key features are:

• Ultra-wide field of view up to 120 mm for inspecting larger or multiple targets
• Industry-leading repeatability as low as ±0.03 µm for ultra-precise measurements
• Ideal for high-speed, high-accuracy inline inspection applications
• Ensures consistent results across a wide variety of materials and target sizes

Key models in the TM-X5000 Series include the TM-X5006, designed for ultra-high accuracy measurements within a compact 6 mm range—ideal for detailed, small-scale inspections. The TM-X5040 serves as the standard model, offering a versatile 40 mm measurement range suitable for most general applications. For larger components, the TM-X5065 provides a wide 65 mm field of view, while the TM-X5120 delivers maximum coverage with an ultra-wide 120 mm range, making it perfect for inspecting large or multiple targets simultaneously.

All models are pre-calibrated and certified for traceable measurements, minimizing setup time and eliminating the need for manual calibration. The system is IP64-rated for industrial environments and includes intuitive software tools for recipe switching, defect analysis, and real-time trend monitoring.

Whether inspecting shaft diameters, lead frames, or transparent materials, the TM-X5000 Series delivers reliable, high-speed, high-resolution measurement – all in a compact, scalable solution.
