Interesting Reference Designs Of Pulse Oximeter

Key

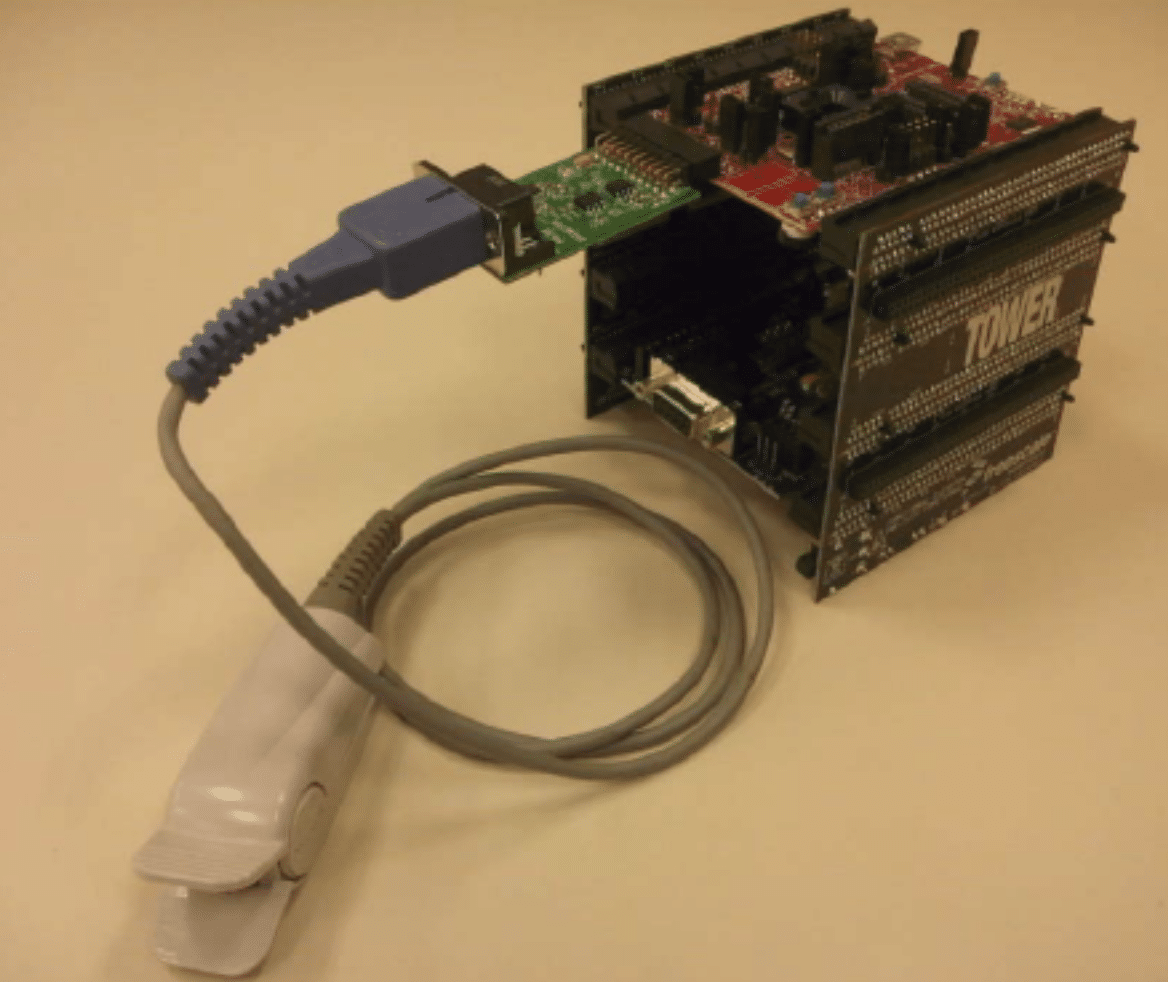

Attractions The reference design supports signal processing, wireless connectivity, and power management. It integrates an external display controller, an analogue front end, and data storage. The reference design collects biometric signals, supports multiple interfaces, and enables data acquisition with low power use. It integrates an optical sensor and rechargeable battery. The reference design supports a low-cost, low-power pulse oximeter for measuring heart rate and oxygen levels, integrating signal processing, power management, and data handling while reducing the need for extra components. The reference design enables a single-chip pulse oximeter with signal processing, power management, and data handling. It supports heart rate and oxygen measurement, low power consumption, and integration into patient monitoring systems. The reference design supports pulse oximetry and medical prototyping with microcontrollers, development tools, and sensor integration. It enables measurement, connectivity, and system expansion for various applications within a development platform.

Highlights The Renesas pulse oximeter reference design is based on the RL78/G13 16-bit microcontroller but requires additional external hardware to meet specific requirements. Since the microcontroller lacks an integrated display controller, an external LCD display controller is added, and the DAC for operating the LED driver is implemented externally. Wireless connectivity can be enabled by connecting a Zigbee or Bluetooth module via the CSI port. The RL78/G13 includes a hardware MAC function for signal processing algorithms that reduce artefacts in SpO2 measurements and features on-chip data flash for implementing the look-up table functionality. The microcontroller is suited for applications in ambulatory and hospital markets when combined with an external analogue front end, including a 12-bit ADC. The firmware manages LED and IR-LED control, signal acquisition, signal processing, LCD display output, and SpO2 data storage in the data flash. Power management software is necessary for low power consumption, and a communication driver can enable USB or wireless connectivity with other devices. The MAXREFDES280 reference design integrates into a wrist-worn device to collect biometric signals, streaming raw photoplethysmography (PPG) data for monitoring vital signs like heart health and blood oxygenation. It provides a platform to evaluate the MAX86171 optical analogue front-end across body sites, focusing on wrist applications. Supporting both I2C and SPI interfaces, the MAX86171 features two optical readout channels that operate simultaneously for data acquisition. Users can configure the band to optimise signal quality while maintaining low power consumption, making it suitable for wearable designs. The hardware setup includes two boards: the MAXSensorBLE# for data acquisition and the MAX86171_OSB# as the sensor daughter board. The system runs on a lithium polymer battery, recharged via a USB-C port. The band includes the MAX86171ENI+ in a 28-bump wafer-level package. Microchip’s pulse oximeter reference design demo board enables the development of a low-cost, low-power handheld or wearable pulse oximeter with a user interface for measuring heart rate and blood oxygen levels. It serves as a foundation for hospital or clinical pulse oximeter designs and wearable activity trackers. The device measures heart rate and oxygen saturation using a dsPIC33FJ128GP802 with a 513th-order digital-FIR bandpass filter, eliminating the need for an analogue front-end and reducing costs. A pulse-width modulation module drives the LCD, while an MCP1640 boost regulator, MCP4728 DAC, and MCP6002 dual op-amp manage power and signal conditioning. It features an 8-channel hardware direct memory access (DMA) system with a 2kbyte dual-ported DMA buffer. The design includes power management with an on-chip 2.5V voltage regulator and real-time clock source switching for performance. Texas Instruments’ TIDA-010267 reference design demonstrates the analogue capabilities of the MSPM0L1306 in a single-chip pulse oximeter. The MSPM0L1306 uses its operational amplifiers as a trans-impedance amplifier and current control driver with zero-drift and low-noise properties. An integrated analogue-to-digital converter (ADC) enables oversampling, achieving a 90dB dynamic range. The design includes a graphical user interface that displays photoplethysmography (PPG) waveforms and provides heart rate and oxygen saturation measurements. It supports heart rates from 30 to 240 BPM and a perfusion index range of 0.1% to 20%. The internal 12-bit ADC ensures readings with a display resolution of 1 BPM for heart rate and 1% for SpO2. The device supports battery life with low power consumption and a shutdown current below 83nA. It is used in clinical pulse oximeters and multiparameter patient monitoring systems, contributing to the assessment of oxygen saturation and patient care. The MED-SPO2 tower system module reference design is a medical development tool for the 9S08MM Flexis 8-bit, MCF51MM ColdFire 32-bit, and Kinetis 32-bit MCU families, supporting pulse oximetry application development and compatibility with multiple tower system modules. It measures oxygen levels using two light wavelengths, 660nm (red) and 940nm (infrared), based on differences in absorption by deoxygenated and oxygenated haemoglobin. The 9S08MM128/64/32 is an 8-bit microcontroller with USB connectivity, graphic display support, and measurement accuracy for medical and industrial applications. The MCF51MM256/128 is a 32-bit microcontroller with low power operation, USB connectivity, and analogue performance for medical devices and industrial control. The TWR-K53N512 supports product development for the Kinetis MCU family, functioning as a standalone debug tool and integrating with the Tower System. The TWR-MCF51MM module supports the MCF51MM256 Flexis ColdFire 32-bit MCUs for medical prototyping, including an electrocardiograph sensor.
